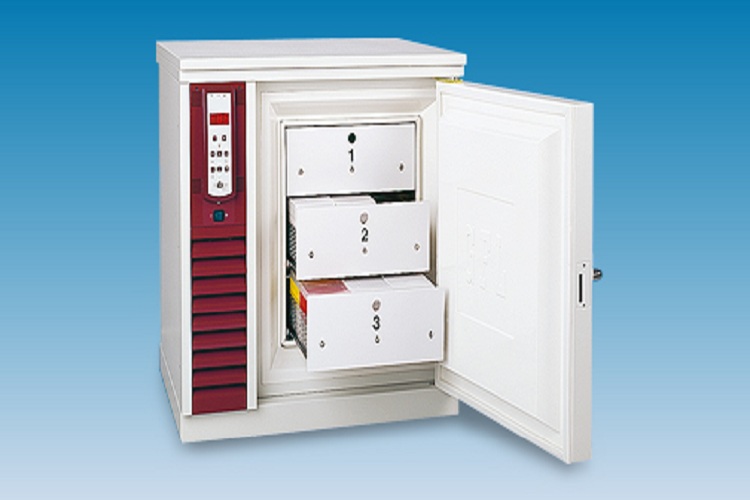

Freezer Order no.6481

Execution and characteristics

Submountable (can be easily integrated into a laboratory line) or freestanding.

User-friendly microprocessor technology.

Comfortable operating unit with digital display for entering and retrieving all safety-relevant values.

Limits for over- and under-temperature alarm (1 - 20 K) adjustable.

Additional control and alarm options, freely adjustable for different application situations.

Maintenance of the display and alarm functions for 60 hours in case of power failure (battery backup).

Electronic alarm system and potential-free contact for connection to an in-house signaling system or the central control technology (ZLT).

RS 232 serial interface for problem-free data transfer.

Interior completely made of stainless steel and explosion-proof.

Equipped with three drawers (height 155, 160, 165 mm).

Magnetic sealing system reliably prevents the door seals from freezing.

Energy-saving, maintenance-free refrigeration system. The special all-round

insulation is up to 150 mm thick. The waste heat is only about 400 W.

areas of application

Only reliable refrigeration technology and first-class isolation can easily store cell lines, human, animal and plant tissue, fractions of the blood, vaccines or reference strains of micro-organisms such as bacteria, yeasts, viruses and fungi for extended periods of time.

The specified external dimension (A) is the actual device dimension . The specified external dimension (B) refers to the depth dimension after removal of the door, the cable connection and the fitting housing as well as the height dimension with the cover plate removed. The freezer requires a distance of at least 60 mm to other appliances or walls, so that the air sucked in for cooling can circulate freely.
