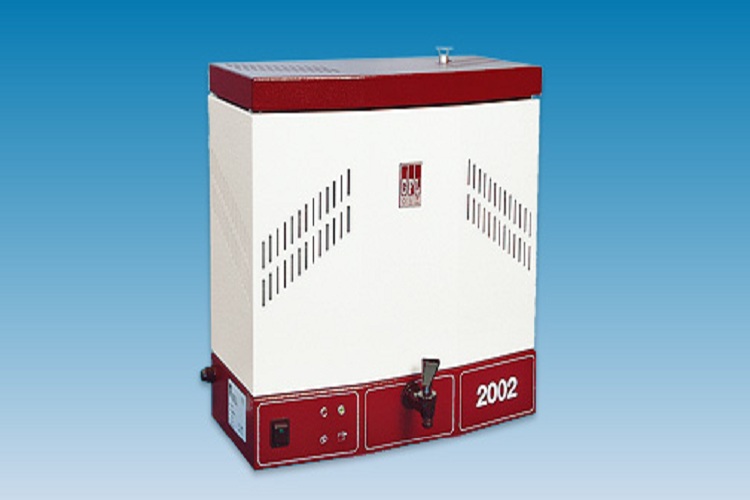

Mono-distiller Order-No.2002
Execution and characteristics
Mono-still (fully automatic) with storage tank, suitable for wall mounting and table installation.
Very good distillate quality, conductivity approx. 2.3 μs / cm at 25 ° C (see "Technical Data").
Storage tank for distillate holds double hourly output of the apparatus.
Electronic level controller switches off the device when the storage container is full and automatically switches it on again after removing the distillate.
Electronic dirt monitor switches off the device if the water in the still is heavily contaminated, the red "Cleaning" indicator lights up.
Thermostatic water shortage protection.
Energy savings by distillation of the heated cooling water.
Water savings through automatic shutdown. Unnecessary water consumption is avoided.
Distillation bubble easily accessible for cleaning purposes.
Condenser (cooling coil) in the reservoir, easy to replace.
Distillate removal tap with permanent and tip position.
CO 2 degassing opening on the condenser.
Tubular radiator, still, reservoir and condenser made of stainless steel
Double-walled housing. Outer housing consists of electrolytically galvanized sheet steel, electrostatically powder-coated with epoxy resin.
Water supply via built-in solenoid valve with connection for water pressure hose 1/2 "(inner ø approx. 12.7 mm).
Cooling water outlet with hose connection 3/4 "(ø approx. 19.0 mm).
Hoses for water supply and drain are available as an option.
areas of application
GFL water distillers are required in research and development for bacteriological and medical sample preparation, for the preparation of cell and tissue cultures as well as for the production of reagents and ointments. In addition, distillate is used for cleaning and sterilization processes,
for buffer solutions as well as for microbiological and analytical applications.
* Average value determined by Institut Fresenius for operation with tap water. The distillate quality depends on the raw water quality.
** other voltages on request
